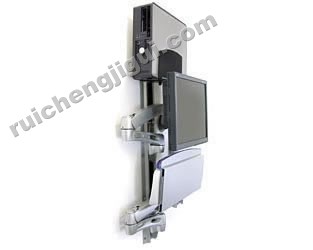

LX Wall Mount System with Medium CPU Holder (silver)
This is a complete solution that accommodates an LCD, keyboard and medium CPU while providing vertical and side-to-side motion. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

好处
Creates a complete and compact workstation.
Maximum ergonomic comfort—effortlessly position your LCD and keyboard where you need them.
Save space—fold up the workstation tight against the wall when not in use.
Integrated cable management and cable channels organize and route cables out of the way.
Easily adjust height of components on Wall Track by loosening set-screws.
Open design for future hardware upgrades.
Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses.

Part Number: 28-518-194
Description: LX Wall Mount System with Medium CPU Holder (silver)
Includes: 10" and 34" Wall Tracks and brackets, LX Wall Mount LCD Arm, LX Keyboard Arm, gel wrist rest, mouse pad, mouse holder, Medium CPU Holder, two 24" Cable Channels, mounting kits for hollow-wall and wall-stud installation
Product Dimensions: Download PDF
*Weight Capacity: display = 20 lbs (9.1 kg); keyboard = 5 lbs (2.2 kg); CPU = 100 lbs (45 kg)
Monitor depth greater than 2" (5 cm) may diminish capacity. Read more
＆#8224;Height Adjustment: display = 13" (33 cm); keyboard = 11.5" (29 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Size Range: 3-3/8" to 7-5/8" (86 to 194 mm) wide
Shipping Dimensions: 36.5" x 9.25" x 15.25" (927 x 235 x 387 mm)
Shipping Weight: 49 lbs (22.2 kg)
Warranty: Five (5) years
